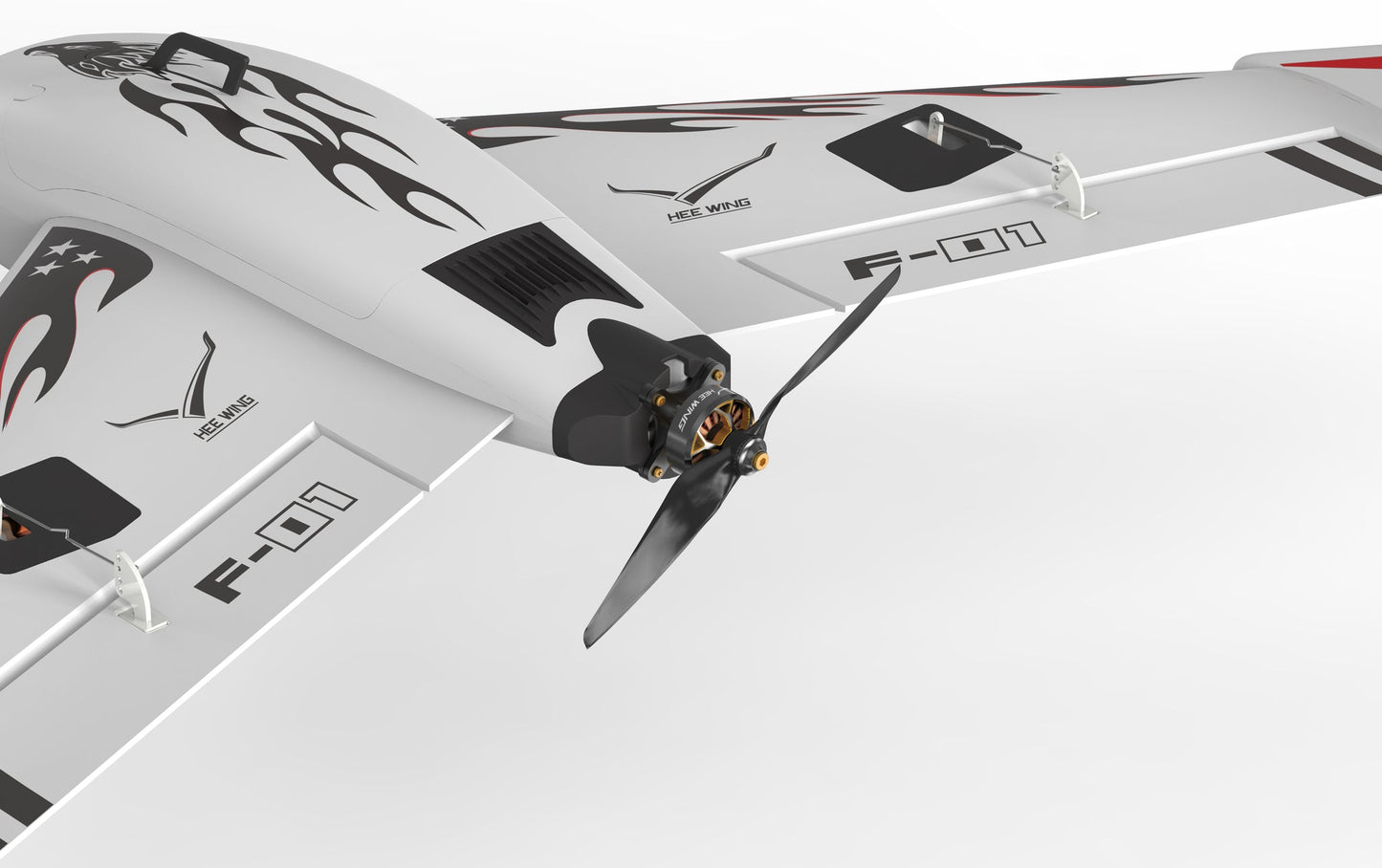

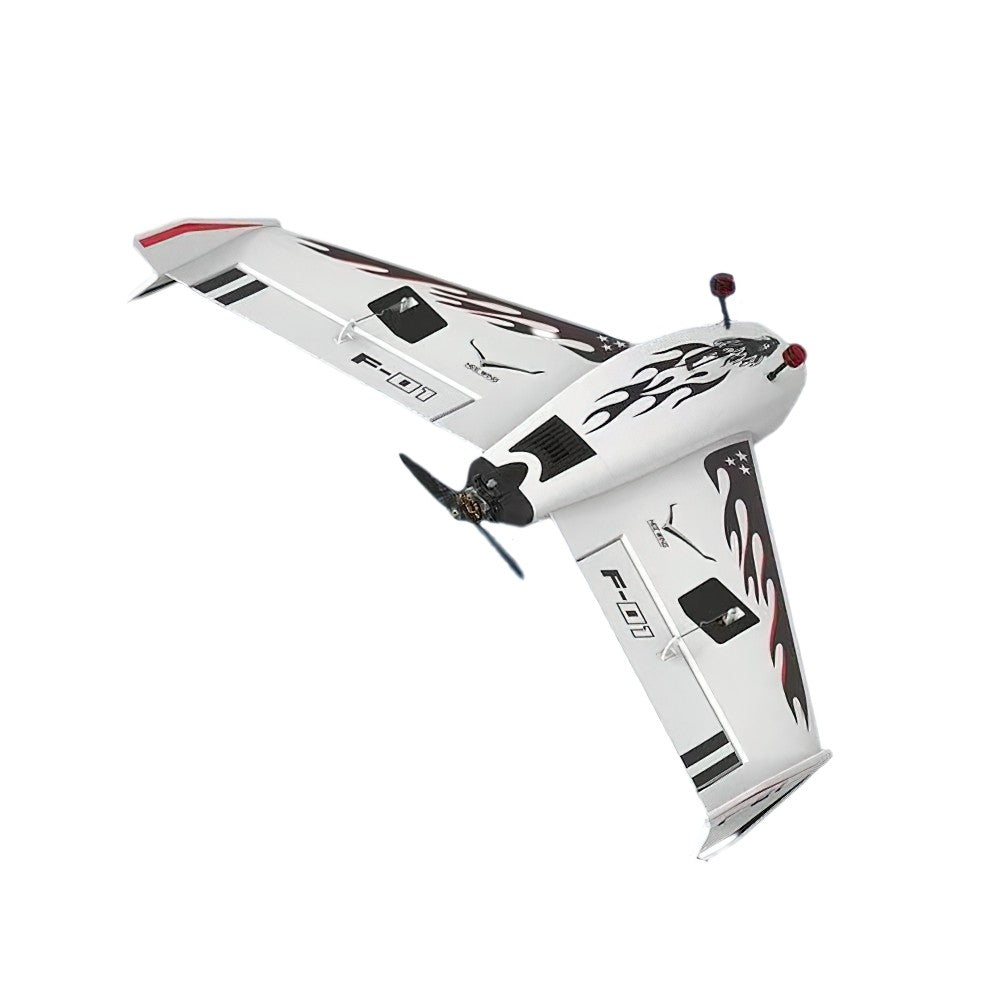

Hee Wing F01 wing 690mm EPP rc airplane

Hee Wing F01 wing 690mm EPP rc airplane

Regular price $99.00 USD
Regular price Sale price $99.00 USD
Sale Sold out
Bundle

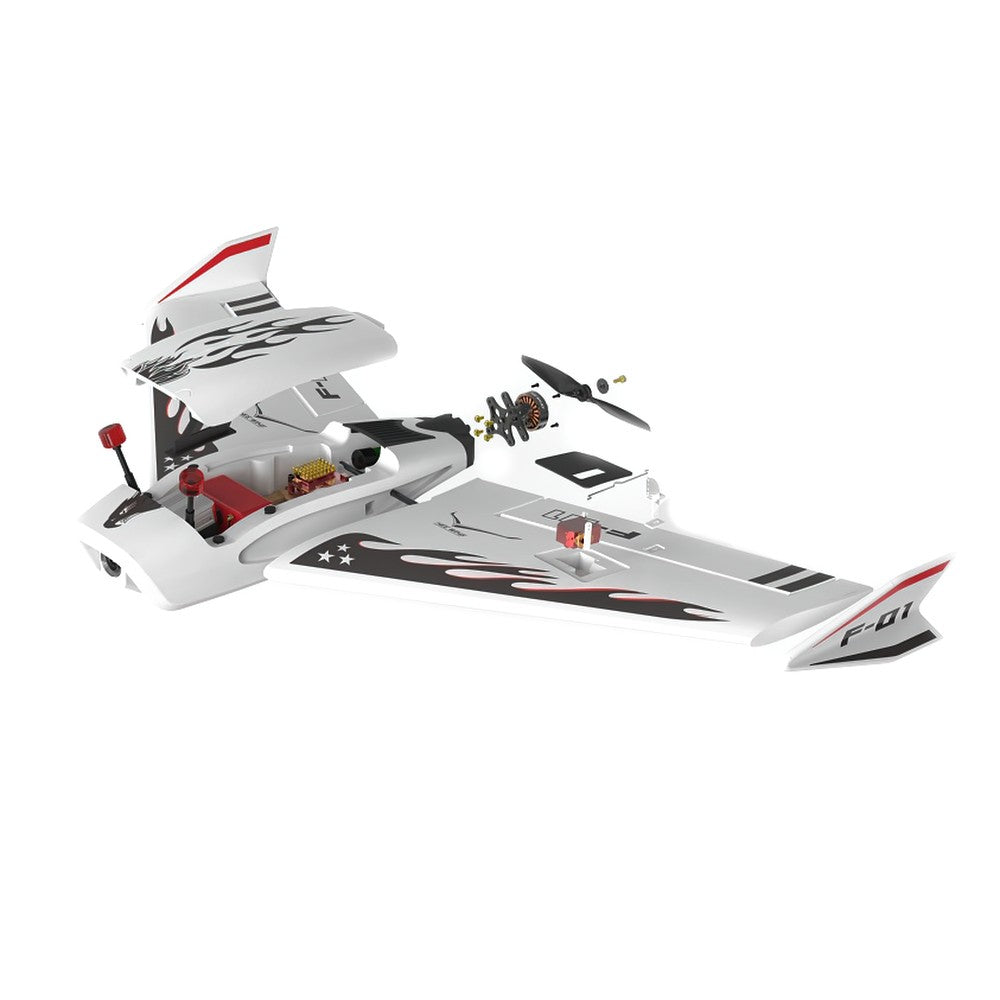

The Hee Wing F01 is a 690mm delta wing RC airplane, which has an unobstructed convection cabin design that ensures that the electronic equipment inside the cab is always cool and worry-free.

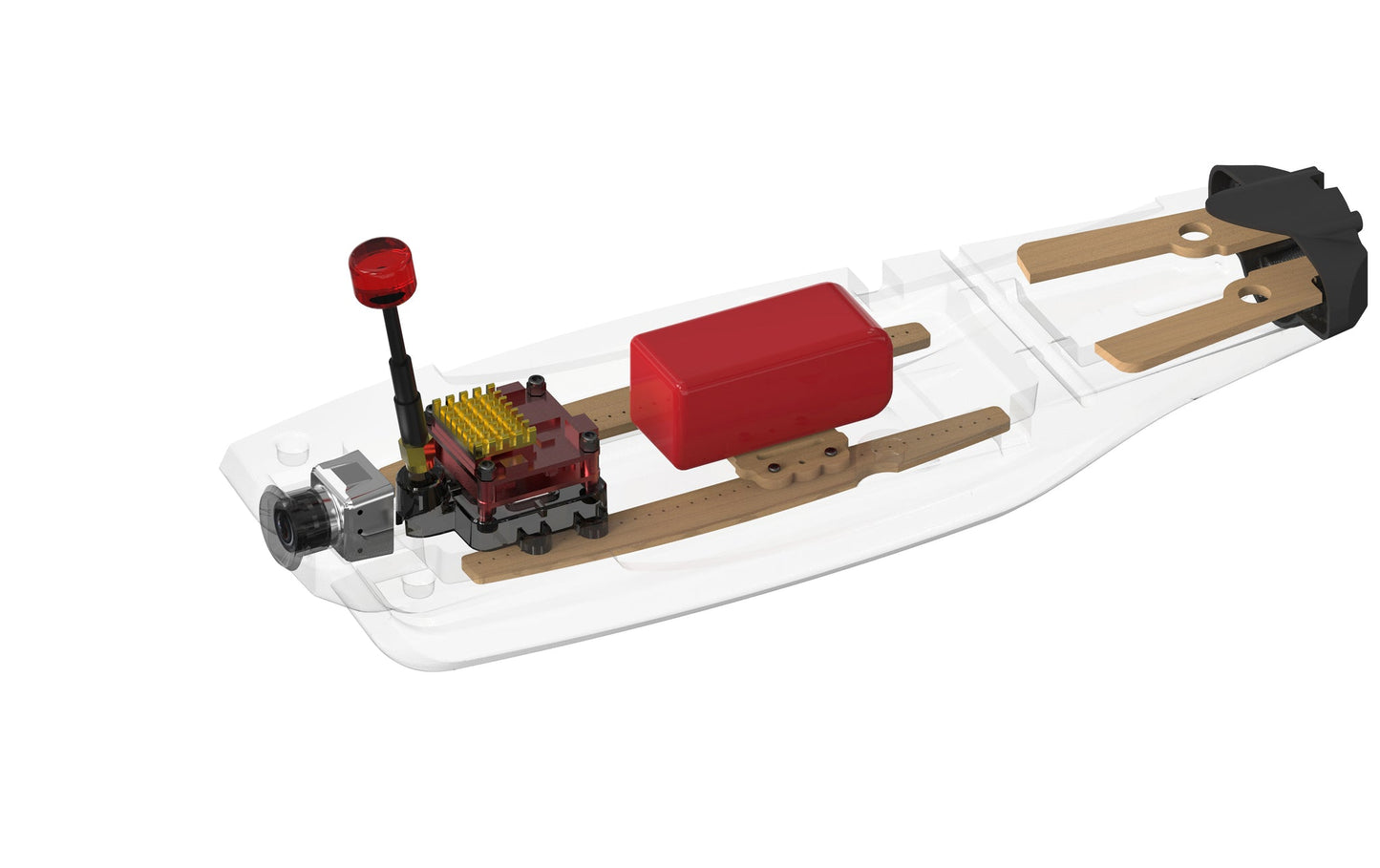

This RC airplane adopts an asymmetric double convex airfoil design, which is good for both long-endurance flights and high-speed maneuvering. Equipped with a dedicated base for digital and analog versions, this plane has high strength while being lightweight. The dual-rail cabin design allows you to adjust the center of gravity with ease.



Features

  • Independent detachable lens plug for both FPV and visual observation flights
  • Wings have embedded carbon fiber rods with different angles
  • Small wingspan with large space for electronics electronics
  • Four magnets are applied to the hatch for better fastening
  • The new wingtip design supports vertical take-off mode
  • Supports horizontal and vertical battery mounting
  • Tailored lens ring for better protection

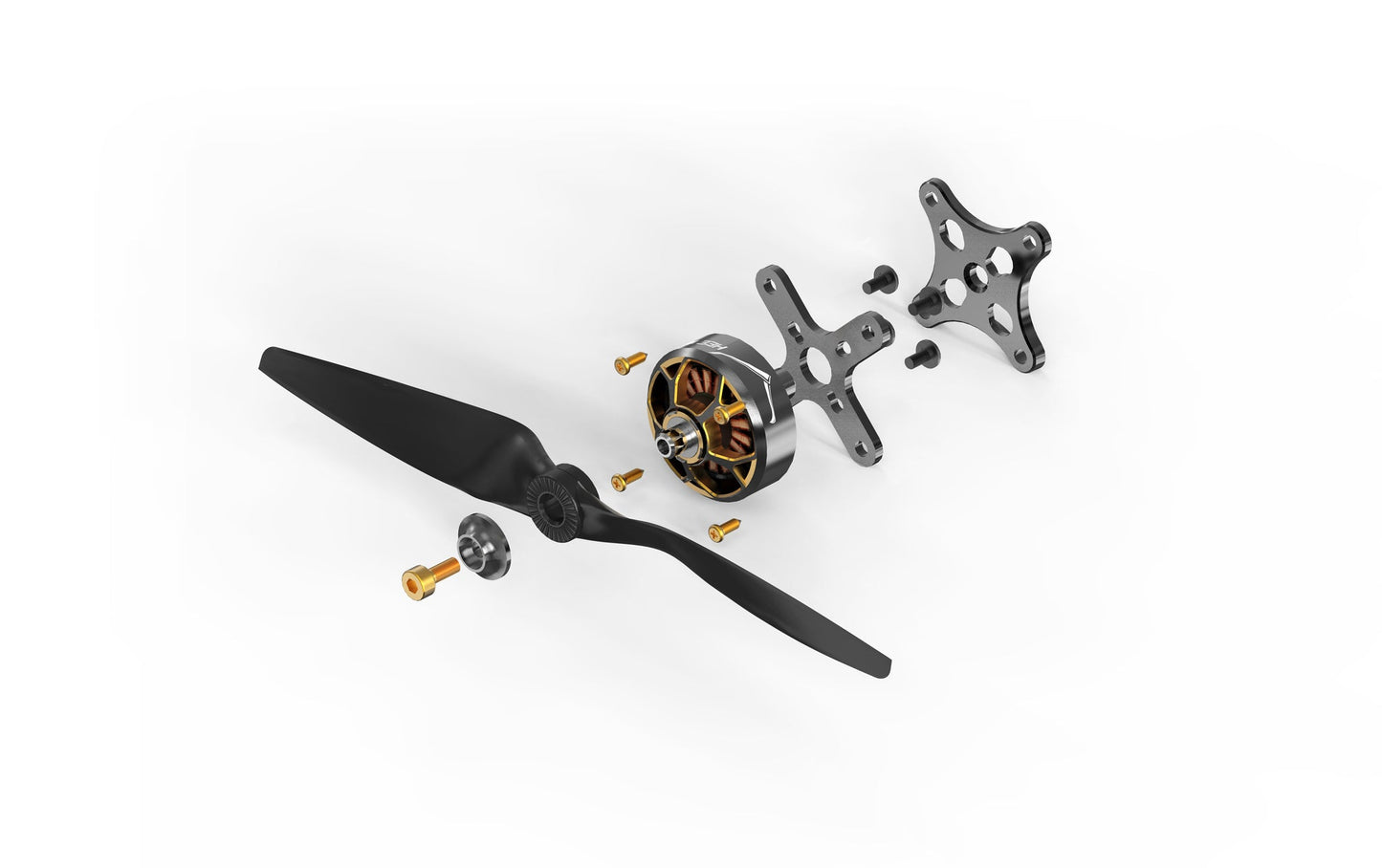

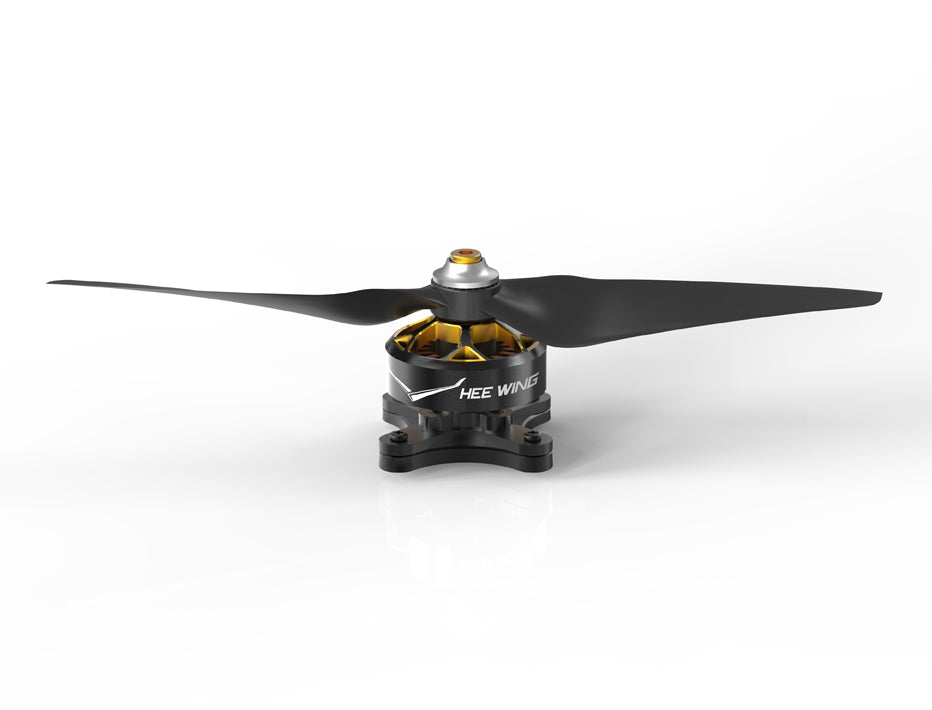

  • All new propeller locking method
  • Tailored for DJI Digital Air unit and similiar size units





Specifications

  • Airplane Dimension: Wingspan 690mm, Height: 88mm, Length: 415mm
  • Fuselage space: Battery compartment: 175mm*175mm*55mm

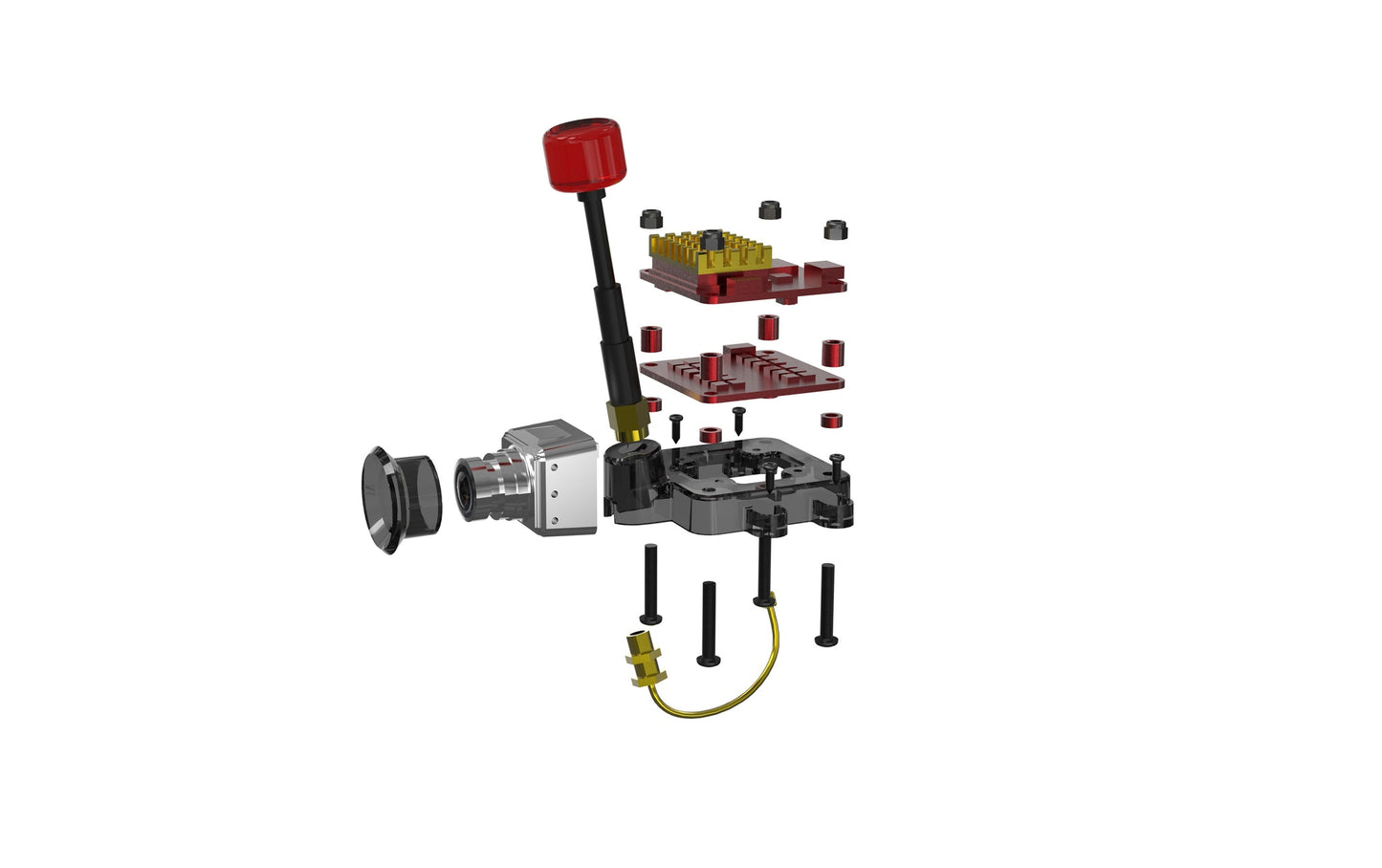

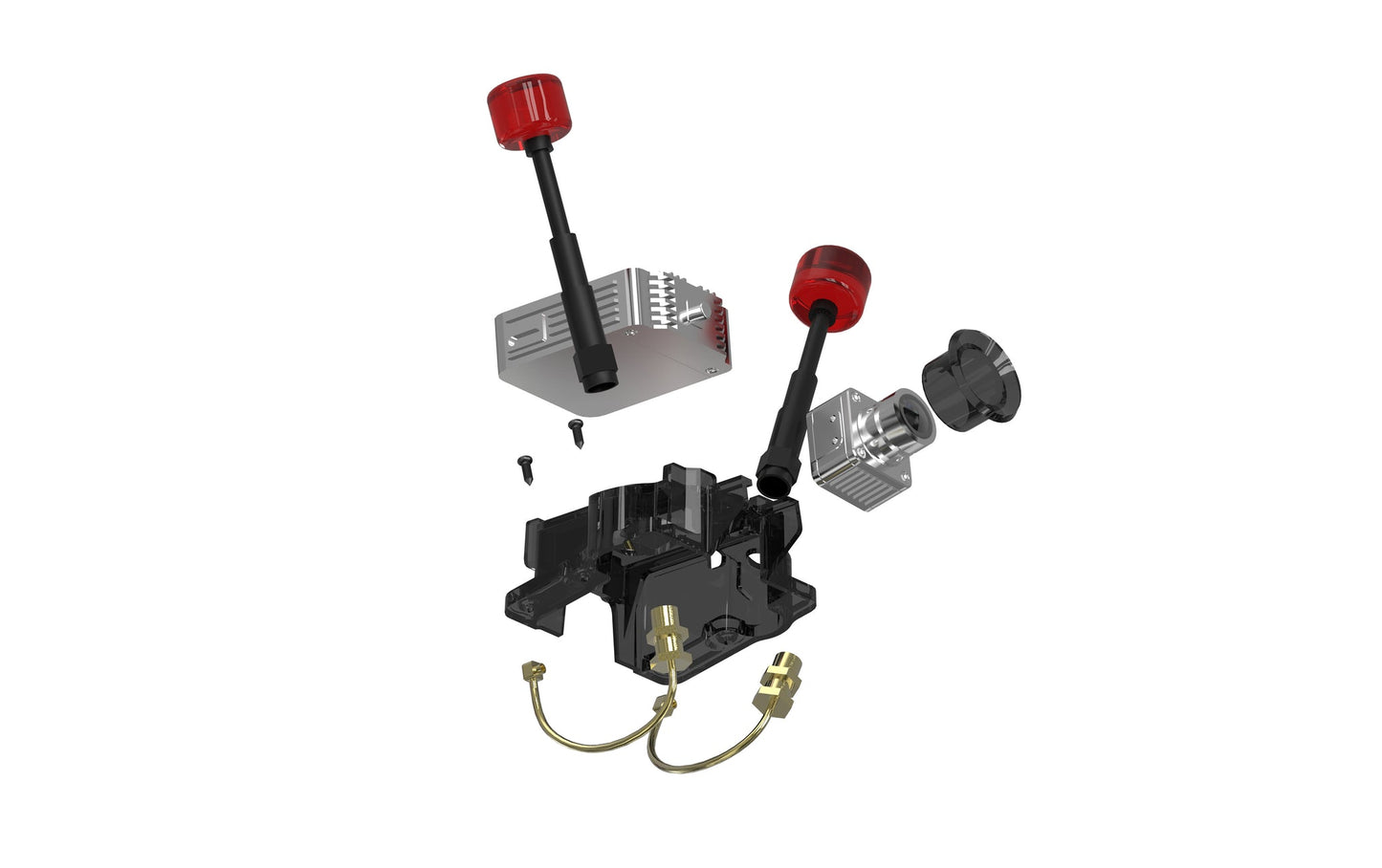

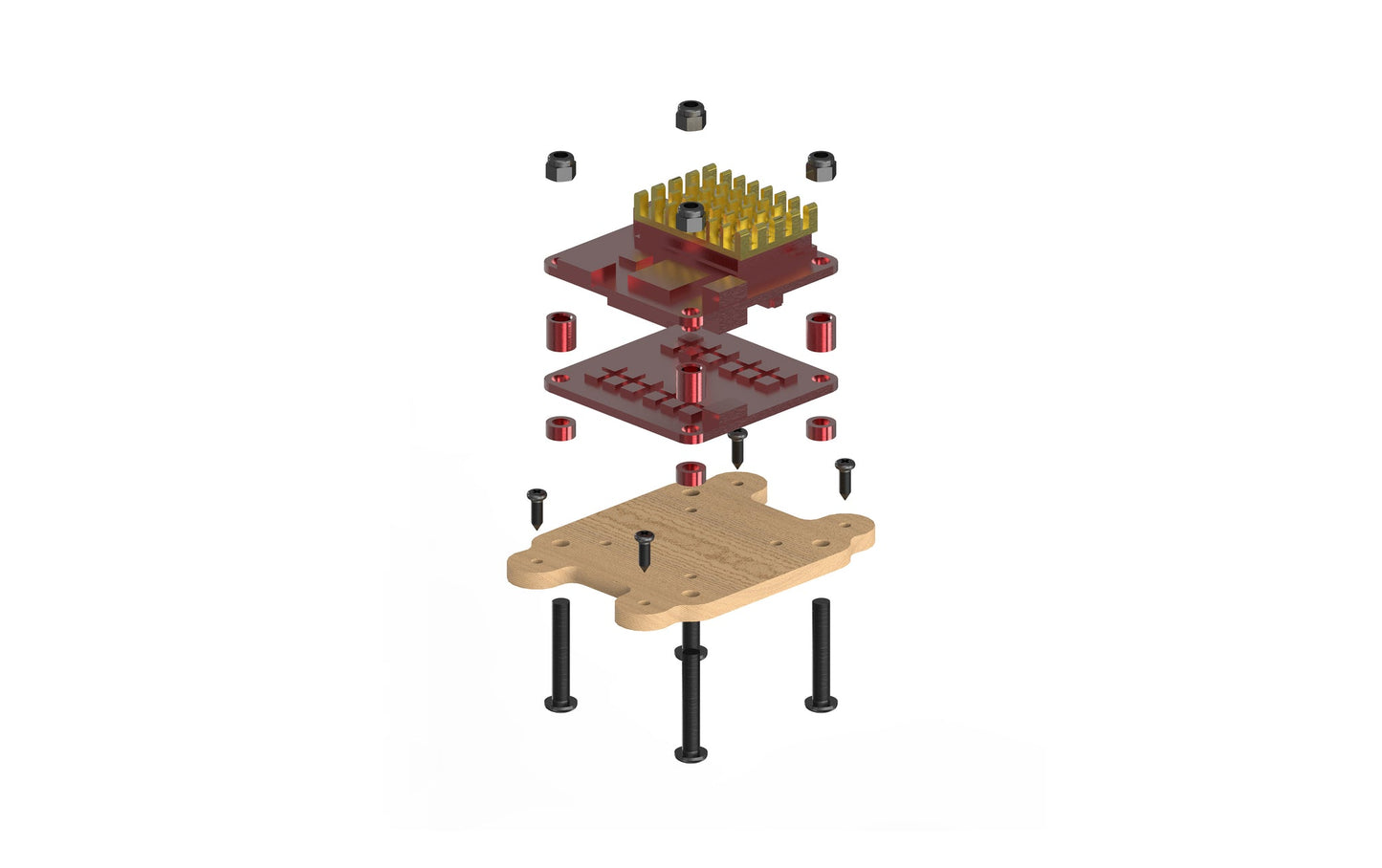

  • VTX fixed seat: compatible with digital VTX and analog VTX
  • KIT Weight: 150g (epp-30)/190g (epp-20)
  • ESC compartment: 70mm*38mm*20mm
  • Material : EPP/ABS/Carbon Fiber
  • Max Flight speed: ≥220+km/h
  • Max Endurance: >70 minutes
  • Take off weight: 350g~850g
  • Min Flight speed: <27km/h
  • Thrust: ≥920g(6*4E prop)
  • Propeller: 5x5E/6x4E
  • Max Mileage: >45km
  • Battery: 2S~4



The Kit comes without electronics and includes:

  • 1x Hee Wing Ultra Delta Wing EPP Body
  • 1x VTX Fixed Seat
  • 2x Rudder Angle
  • 1x Hardware Kit
  • 2x Tie Rod (+/-)
  • 1x Velcro Tape
  • 1x Lipo Strap
  • 1x 6" Prop
  • 1x 5" Prop
  • 1x Decals



PNP Youth Edition
  • 1x 2204-2200kv brushless motor
  • 1x FTC 20A brushless ESC with 2A UBEC
  • 2x 5045" Propeller
  • 2x 9g digital Servo
  • 1x Hee Wing RX-1.0 flight controller





PNP PRO
  • 1x FX-2205/2350kv brushless motor
  • FX-35A esc
  • 1x Diatone 5V 2A UBEC
  • 1x 5x5" propellor
  • 1x 6x4" propellor
  • 2x GDW 12g digital metal gear servo
  • XT60+3.5mm banana plug



PNP PRO + FC
  • 1x FX-2205/2350kv brushless motor
  • FX-35A esc
  • 1x Diatone 5V 2A UBEC
  • 1x 5x5" propellor
  • 1x 6x4" propellor
  • 2x GDW 12g digital metal gear servo
  • XT60+3.5mm banana plug
  • SN-L Flight controller (pre configured)



Spare parts and upgrades

we have all the spares ready for you in case you should need something. Go check-out the spares here
